제품 세부 사항

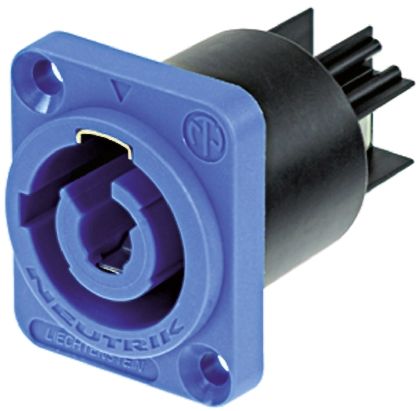

3-Pole Locking Mains Connector

A compact and cost effective solution where a secure and reliable mains connection up to 20A is required, by professional A/V users, computer and numerous other applications. The Powercon® range of professional locking mains appliance couplers meet the latest safety standards and fill the gap between non-locking IEC connectors and expensive, large 3-phase power plugs.,Cable connectors have solid contacts with screw terminals which accept a 1.5mm hex key, (use with ferrules supplied for stranded wire).Chassis connectors are fitted with flat tabs (4.8mmx0.5mm) for 0.187in. crimp receptacles or soldering. A cable coupler is also available for in-line connection between A and B-type cable connectors.


Current Rating20A
Mounting TypePanel Mount
Connector TypePower Connector
Voltage Rating250 V ac
Pole Format3P
ColourBlack, Blue
Body MaterialNylon
Cable Diameter5 → 15mm
Contact MaterialBrass
Contact PlatingSilver
